For Japanese Car Diagnostic Tools

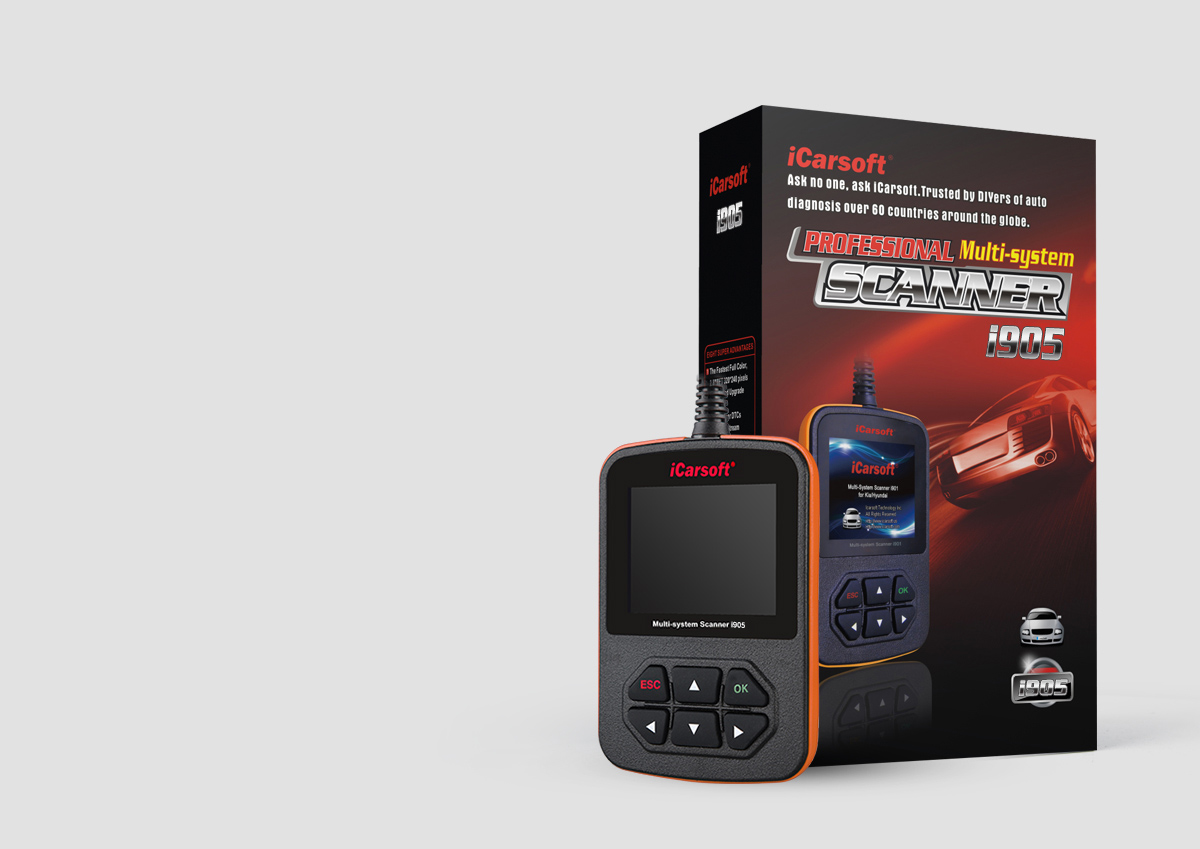

iCarsoft Multi-system Scanner i905 for Toyota/Lexus/Scion/Isuzu

A) Display: 2.8" Color screen , 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ -- 50 ℃
C) Storage Temperature: -20 ℃ -- 70 ℃
D) Power: 9V -- 18V
E)Operating current:100mA@12V(Typical)
F)Power consumption:1.2W(Typical)
G)Dimension:121mm*86mm*26mm(LxWxH)
H)Weight:300g

Color: orange
Price: $113.95 USD
+ -

Current inventory: 99999

DescriptionSpecificationReviews

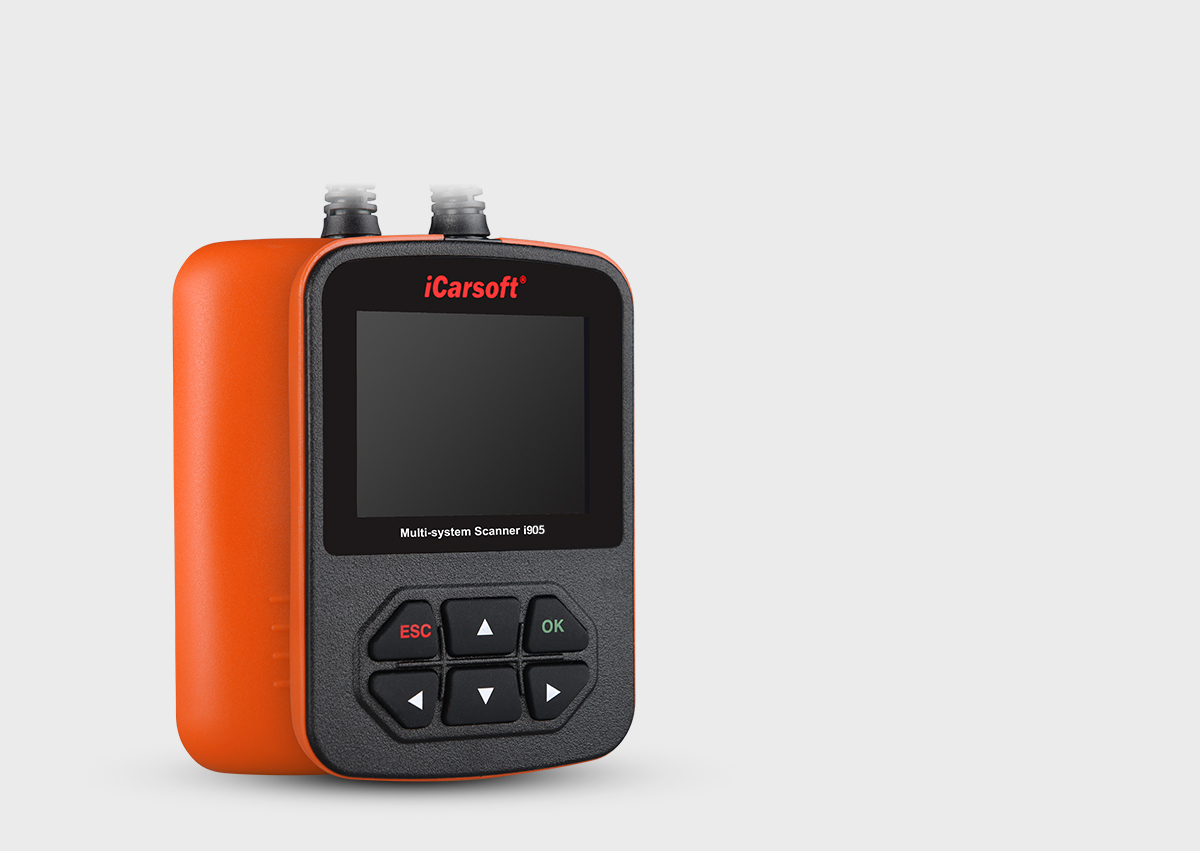

iCarsoft Multi-system Scanner i905
for Toyota / Lexus / Scion / Isuzu +OBDII
(Diagnose Single Brand of all Models, OBDII-16 DLC)


i905 Multi-system Scanner supports full system diagnosis. It's a powerful DIY tool, test modes include: CANBUS, ISO9141, KWP2000, J1850 etc. It enables technicians to accurately diagnose complex problems.

i905 is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc. Especially for full system of one vehicle brand. This product supplies colorful TFT screen and unique diagnostic software.

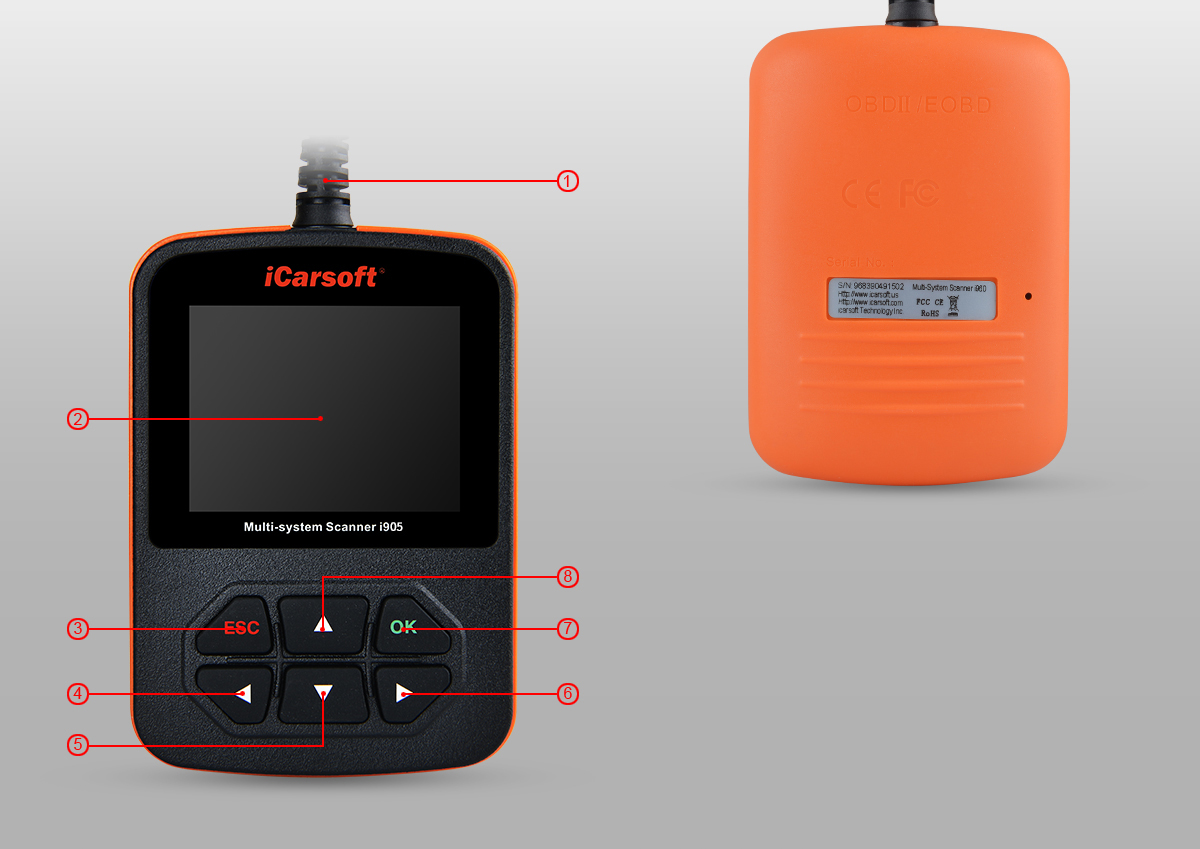

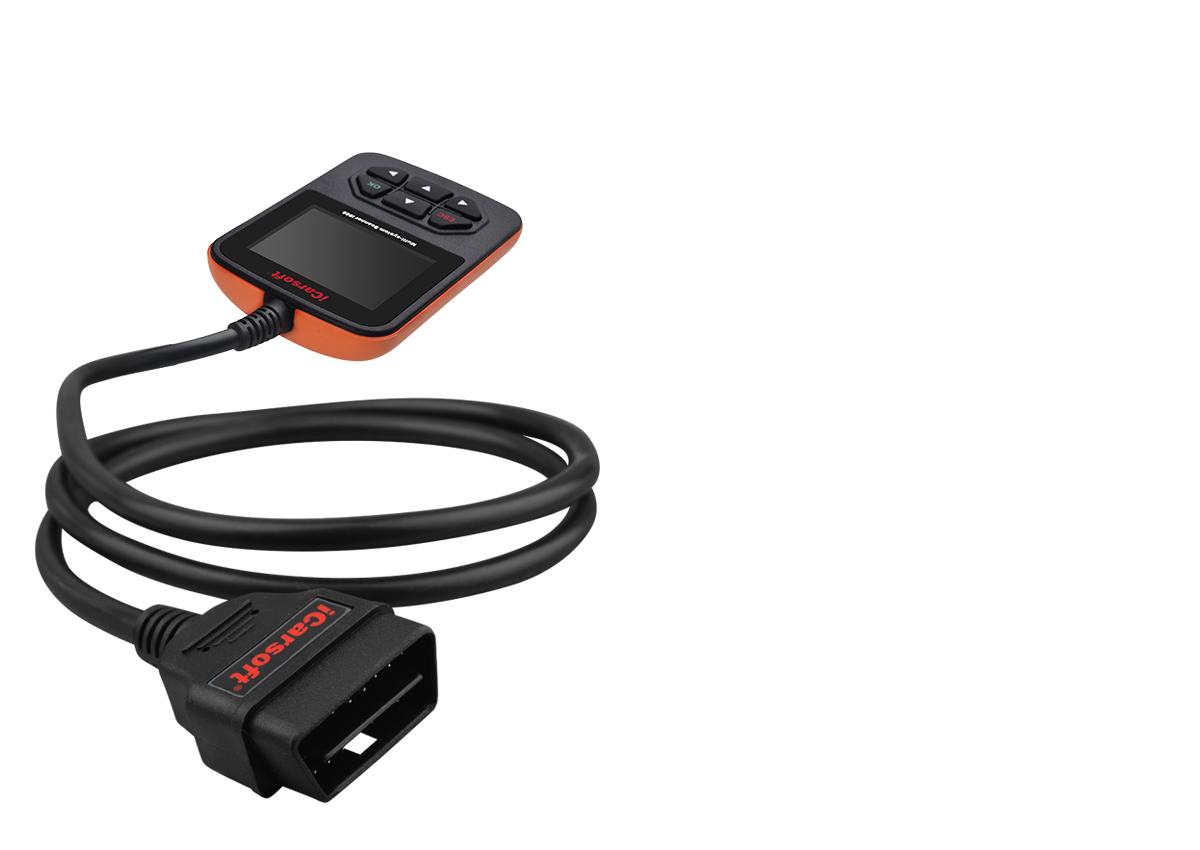

① Cable with OBD II Connector -- Connects the Multi-system

    Scanner to the vehicle's Data Link Connector(DLC).

② LCD Display -- Indicates test results.

③ ESC Button -- Returns to previous menu.

④ LEFT Button -- Move cursor right or left for selection;Or turn

    page up and down when more than one page is displayed.

⑤ DOWN Button -- Move cursor up and down for selection.

⑥ RIGHT Button -- Move cursor right or left for selection;Or turn

    page up and down when more than one page is displayed.

⑦ OK Button -- Confirms a selection(or action)from a menu list.

⑧ UP Button -- Move cursor up and down for selection.

Eight
Super Advantages

1. The fastest full color, 2.8" TFT 320*240 pixels
2. High Speed Upgrade via PC
3. Support Multi-language
4. Read & Clear DTCs
5. Read Date Stream
6. Silicone keys with great customer experience
7. Full System Diagnosis
8. Diagnose Single Brand of all Models ( OBDII-16 DLC )



OBDII function



1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM data stream
13. Support CAN (Controller Area Network) and all other
14.Multilingual menu and DTC definitions- English, Spanish, and German, etc
15.Read pending DTCs
16.Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More

System Coverage for Toyota (1996-2016)

(not all cars cover these systems,you can check function list for details.)

• Eng and ECT
• Eng
• ECT
• EMPS
• ABS/VSC/TRC
• Entry&Start
• SRS
• Cruise Control
• 4WD
• AFS
• AC
• Radar Cruise
• BODY
• Main Body
• Immobilizer
• Power Source Control
• Combination Meter
• P-Door Motor
• D-Door Motor
• Theft Deterrent

• RL-Door Motor
• RR-Door Motor



• Rear right door
• Sliding Roof
• Driver Seat
• Tilt &Telescopic
• Mirror
• Master Switch
• Parking Assist Monitor System
• Hybrid Control
• Tire Pressure Monitor
• Pre-Crash

• Back Door
• Clearance Sonar
• Air suspension/AHC/EMS
• Lane Keeping Aisst
• Rear left Door
• Navigation System
• Starting Control
• Remote Engine Starter
• Passenger Seat

• Gateway
• D-SEAT SW
• Passenger Door
• Driver Door

• Pre-Crash 2
• Charging Control

• HL Auto Leveling
• Rear Right Seat
• Rear Left Seat
• Laser Cruise
• Rear Seat Switch
• Steering Pad Switch
• Rain Sensor
• Wiper
• Combination Switch
• Night View
• Front Left Door
• Front Right Door
• Stop And Go
• Transmission Control
• Rear Left Seat A/C
• Rear Right Seat A/C
• Electric Power Control
• HV Battery
• Back Door P/W
• ARS
• Smart Key
• VGRS
• Electric Parking Brake
• EFI


Features for Toyota
• Read DTCs
• Clear DTCs
• Read live data stream
• Single Brand of all Models ( OBDII-16 DLC )
• Full system diagnosis
• Upgrade via PC
• Multi-language
VEHICLE COVERAGE FOR TOYOTA



• RAV4
• VANGUARD
• ESTIMA
• CAMRY
• ESTIMA HV
• MARK X Zio
• ALPHARD/VELLFIRE
• ALPHARD HV/VELLFIRE HV
• CAMRY HV
• CROWN HV
• BLADE
• SAI
• LAND CRUISER PRADO
• HILUX SURF
• CROWN
• CROWN PATROL CAR
• MARK X
• FJ CRUISER
• HARRIER
• CENTURY
• HIACE
• TOYOACE/DYNA 150/100
• iQ
• BELTA
• VITZ
• HARRIER HV
• KLUGER HV
• ist
• RACTIS
• PORTE/SPADE
• AQUA
• PRIUS

• COROLLA AXIO/FIELDER
• ALLION/PREMIO
• AURIS
• COROLLA
• COROLLA RUMION
• HIACE/REGIUSACE
• HIMEDIC
• CELSIOR
• LAND CRUISER
• CROWN MAJESTA

• Japan SDF Vehicle
• TOYOACE/DYNA 200


• QUICKDELIVERY
• COASTER
• FT-86
• WISH
• ISIS
• NOAH/VOXY
• AVENSIS
• PRIUS PHV
• PRIUS α
• bB
• TOWNACE
• PASSO
• PASSO SETTE
• Rush
• LITEACE
• PIXIS SPACE
• PIXIS Truck/Van
• PIXIS EPOCH

• IPSUM
• GAIA
• MR2
• NADIA
• Opa
• KLUGER
• CALDINA
• ALPHARD HV/VELLFIRE HV
• Vista/Vista Ardeo
• DYNA 200
• CARINA
• CROWN Mild Hybrid
• ALTEZZA/ALTEZZA GITA
• MARK2/MARK2 BLIT
• Verossa
• CROWN SEDAN/COMFORT
• CROWN COMFORT
• PROGRES/BREVIS
• SUPRA
• CROWN ESTATE
• ARISTO
• Granvia/GRAND HIACE
• MARK2 QUALIS/CAMRY GRACIA

• WINDOM
• Pronard
• Fun Cargo
• PLATZ

• PROBOX/SUCCEED

• RAUM
• SIENTA
• WiLL Cypha
• WiLL Vi
• PORTE
• COROLLA RUNX/ALLEX
• COROLLA SPACIO
• WiLL VS
• Celica/CURREN
• SOARER
• VOLTZ
• MR-S
• DYNA 150/100

• SURF
• Venza
• Matrix
• xB
• Avalon
• Sequoia
• Highlander HV
• Prius V
• xA
• Tundra
• Highlander
• Sienna
• Solara
• Prius C
• Avalon HV
• tC
• Rav4 EV
• 4Runner
• FR-S
• Yaris
• xD
• Tacoma
• iQ EV
• AVANZA
• Hilux
• MR2 Spyder
• Celica
• Echo
• Tercel
• Paseo
• Previa

• PREVIA/TARAGO

• COROLLA/AURIS
• ZELAS
• PREVIA HV
• ALPHARD
• ALPHARD HV
• COROLLA VERSO

• NEL
• RUKUS
• VELLFIRE
• LAND CR.
• FORTUNER/HILUX SW4
• HIGHLANDER HV
• LAND CR PRADO
• HONGQI
• REIZ
• HIGHLANDER/KLUGER
• CAMRY/AURION
• DYNA
• YARIS/ECHO
• INNOVA/KIJANG INNOVA
• Verso-s
• Verso-s/Ractis
• VIOS
• ETIOS
• YARIS HV
• URBAN CRUISER
• COROLLA AXIO
• VERSO
• 86
• E'z
• NOAH
• PRIUS +/PRIUS V
• PRIUS Plug-in
• AURIS HV
• AGYA
• AVENSIS VERSO/PICNIC
• CORONA
• AYGO
• YARIS VERSO/ECHO VERSO


Specifications
A) Display: 2.8" Color screen , 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ -- 50 ℃
C) Storage Temperature:  -20 ℃  --  70 ℃
D) Power:  9V -- 18V
E)Operating current:100mA@12V(Typical)
F)Power consumption:1.2W(Typical)

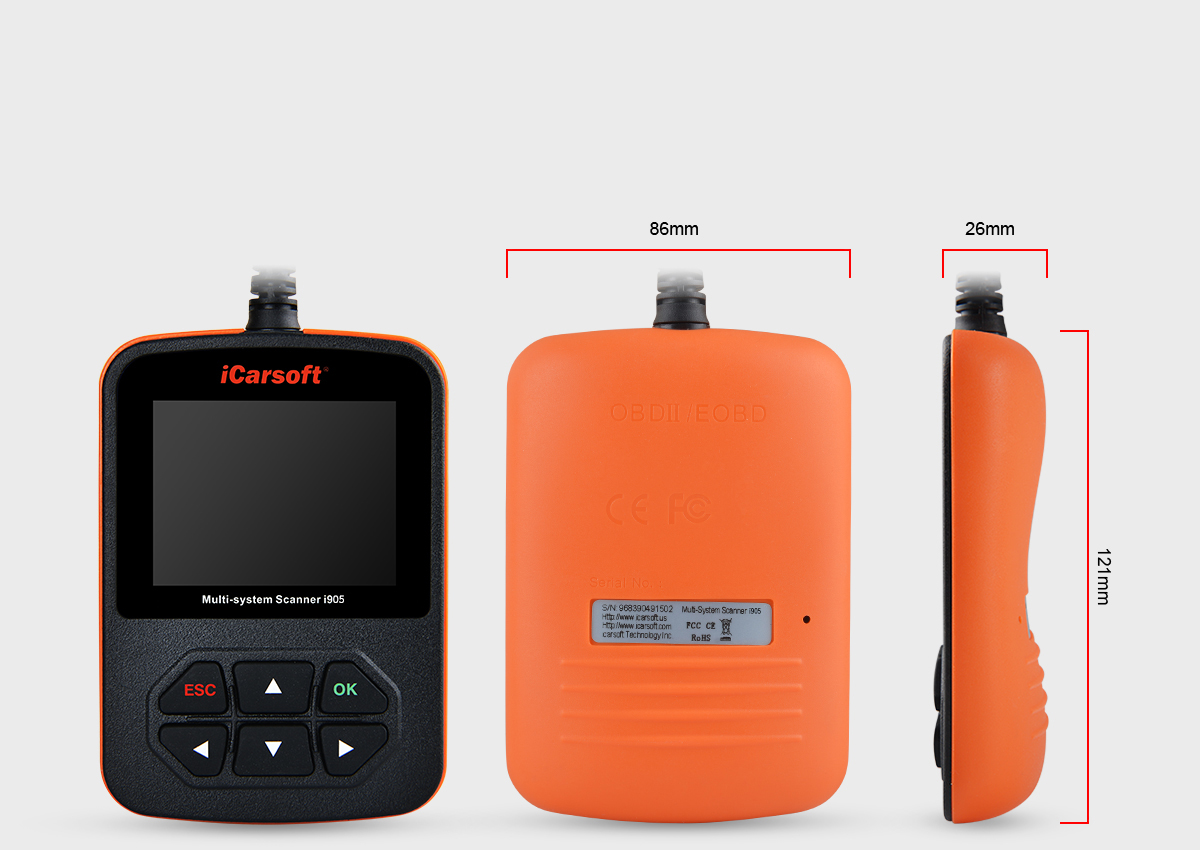

G)Dimension:121mm*86mm*26mm(LxWxH)
H)Weight:300g

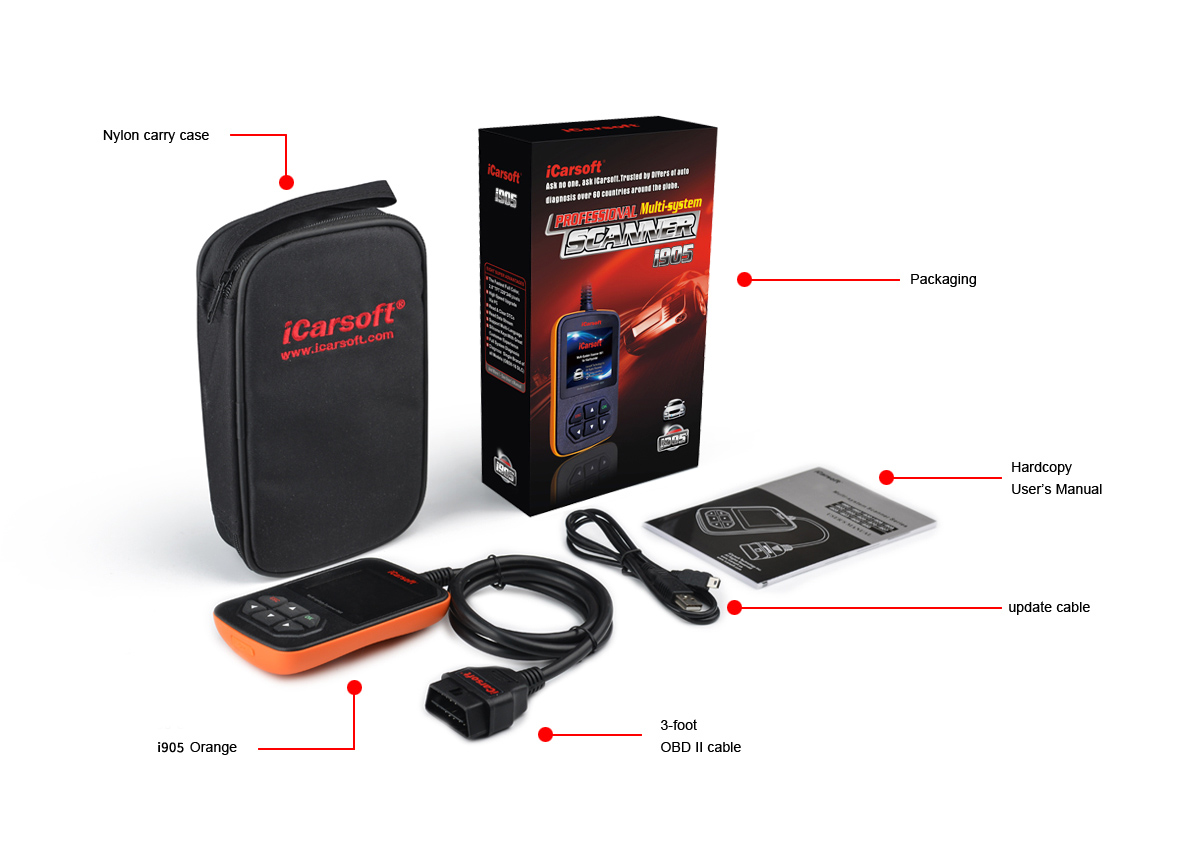

Contents
Support Multi-Language
Below languages are now available:
• English
• German
• Spanish
• French
• Portuguese
• Russian
• Dutch
• Italian
