For Japanese Car Diagnostic Tools

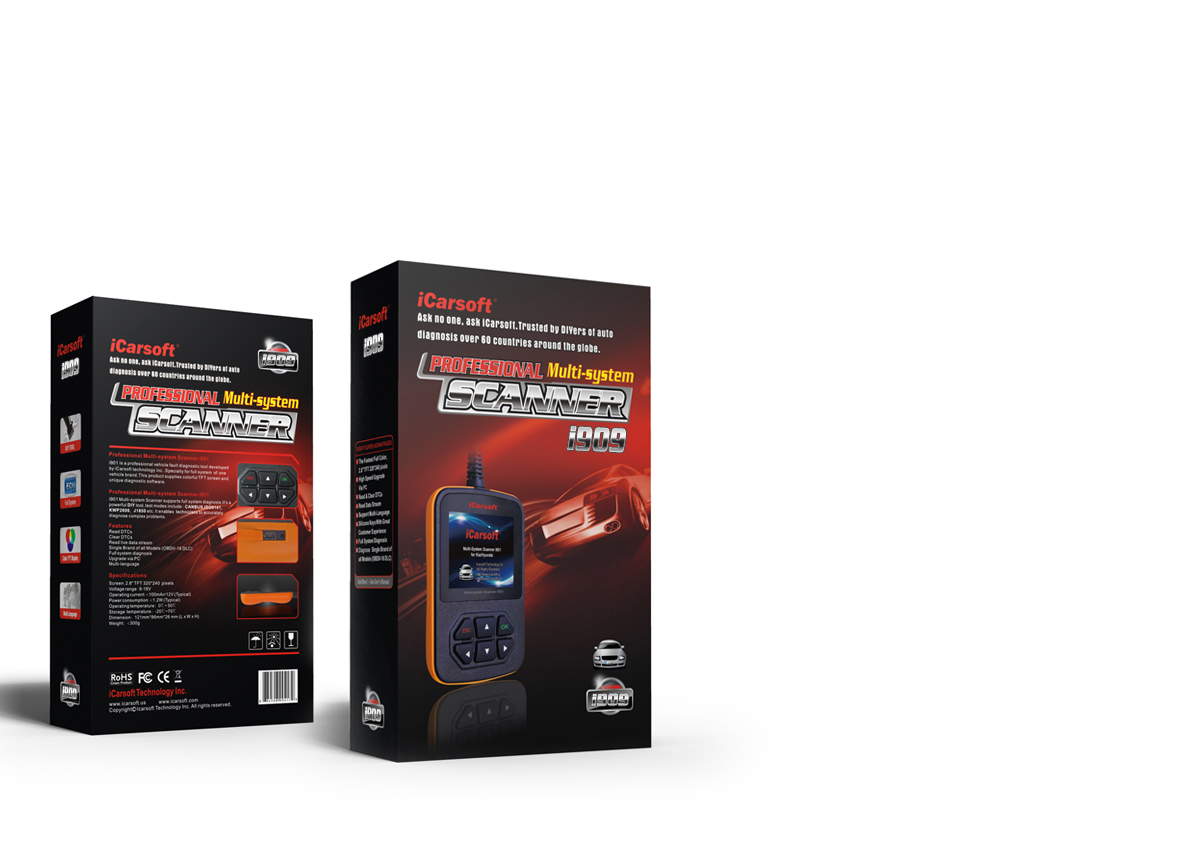

iCarsoft Multi-system Scanner i909 for Mitsubishi/Mazda

A) Display: 2.8" Color screen , 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ -- 50 ℃
C) Storage Temperature: -20 ℃ -- 70 ℃
D) Power: 9V -- 18V
E)Operating current:100mA@12V(Typical)
F)Power consumption:1.2W(Typical)
G)Dimension:121mm*86mm*26mm(LxWxH)
H)Weight:300g

Color: orange
Price: $113.95 USD
+ -

Current inventory: 99999

DescriptionSpecificationReviews

iCarsoft Multi-system Scanner i909 for Mitsubishi / Mazda+OBDII(Diagnose Single Brand of all Models, OBDII-16 DLC)

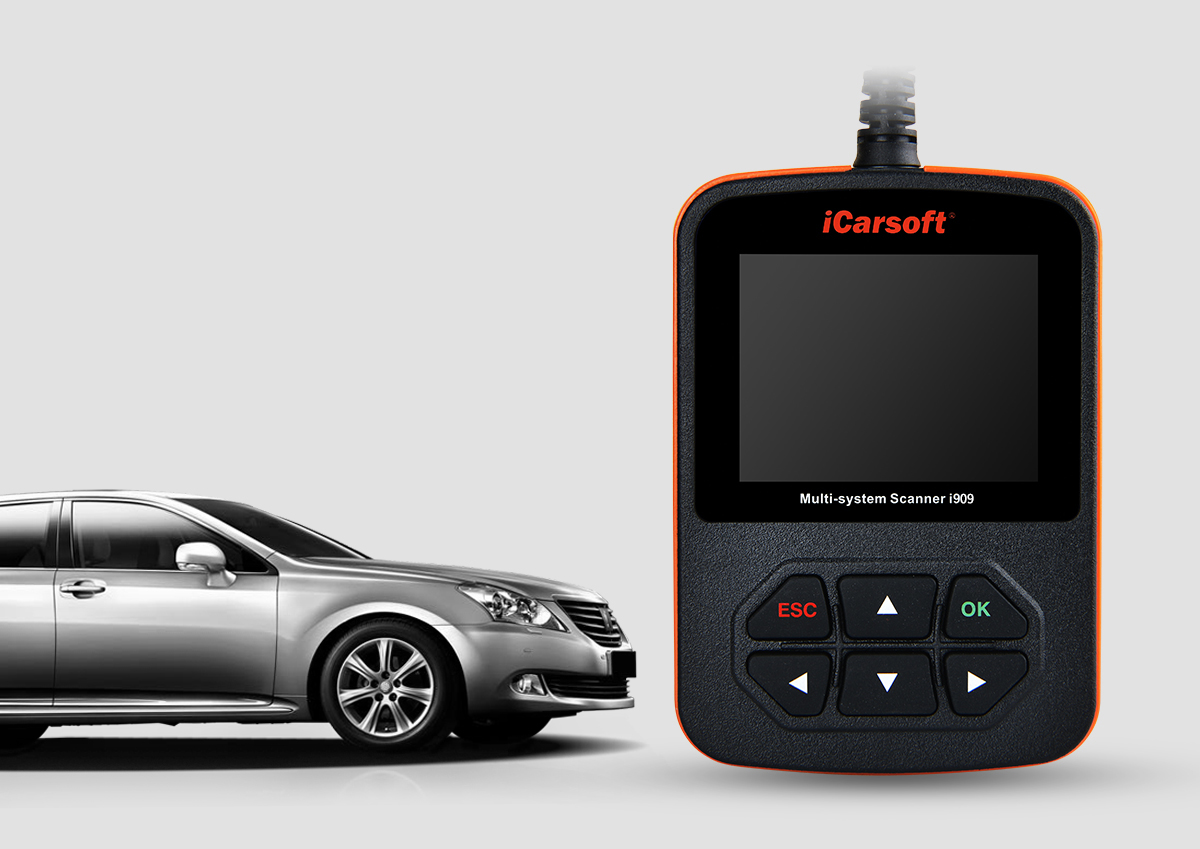

i909 is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc.. Especially for full system of one vehicle brand. This product supplies colorful TFT screen and unique diagnostic software.

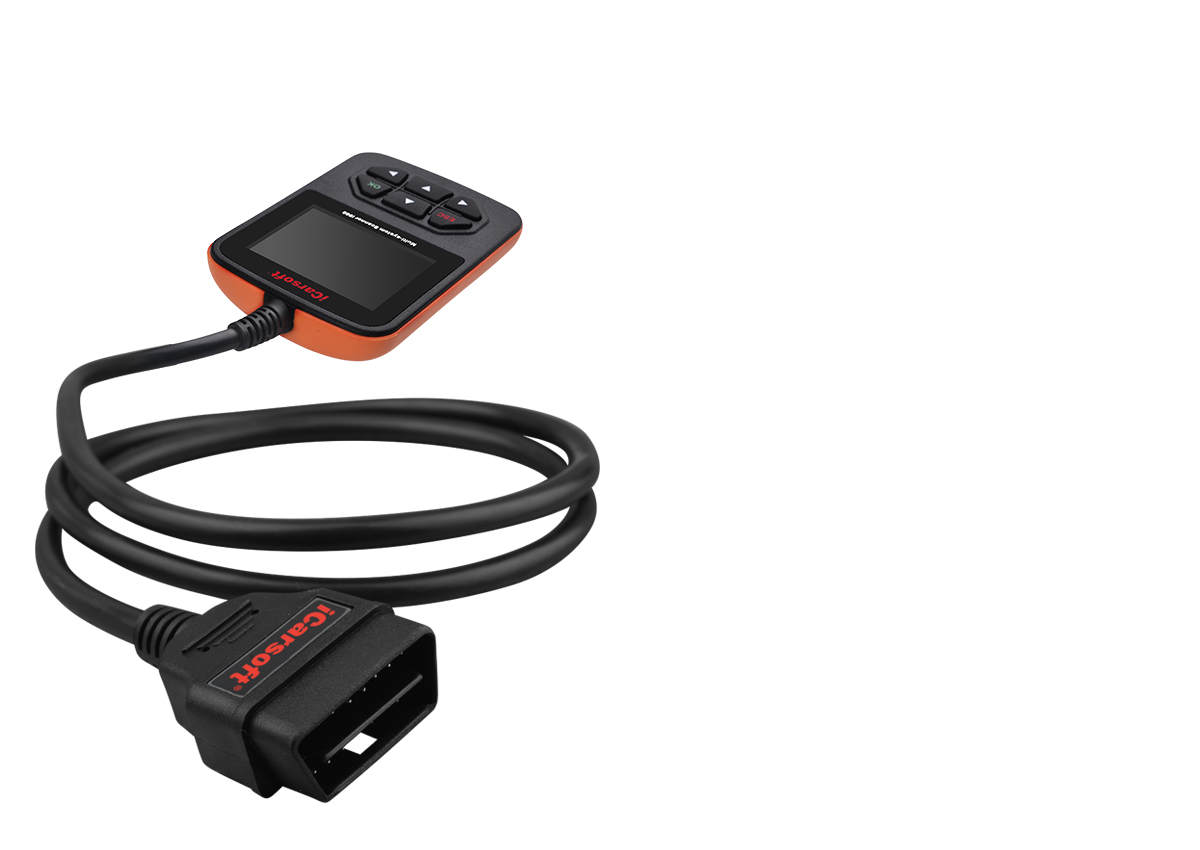

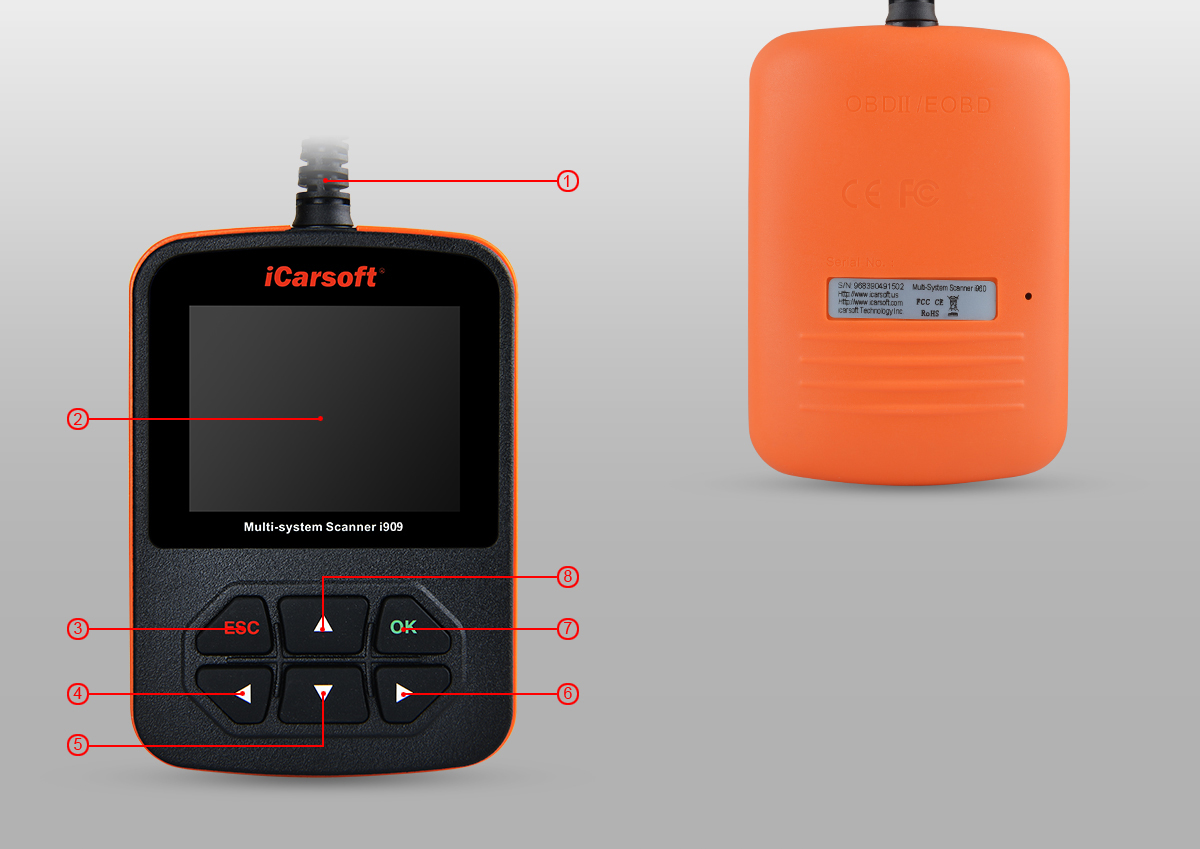

① Cable with OBD II Connector -- Connects the Multi-system

    Scanner to the vehicle's Data Link Connector(DLC).

② LCD Display -- Indicates test results.

③ ESC Button -- Returns to previous menu.

④ LEFT Button -- Move cursor right or left for selection;Or turn

    page up and down when more than one page is displayed.

⑤ DOWN Button -- Move cursor up and down for selection.

⑥ RIGHT Button -- Move cursor right or left for selection;Or turn

    page up and down when more than one page is displayed.

⑦ OK Button -- Confirms a selection(or action)from a menu list.

⑧ UP Button -- Move cursor up and down for selection.

PROTOCOL SUPPORT

i909 Multi-system Scanner supports full system diagnosis.
It's a powerful DIY tool,test modes include: CANBUS,
ISO9141, KWP2000, J1850 etc..
It enables technicians to accurately diagnose complex problems.



OBDII function


1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Tested data

Features for Mitsubishi/Mazda



• Read DTCs
• Clear DTCs
• Read live data stream
• Single Brand of all Models ( OBDII-16 DLC )
• Full system diagnosis
• Upgrade via PC
• Multi-language

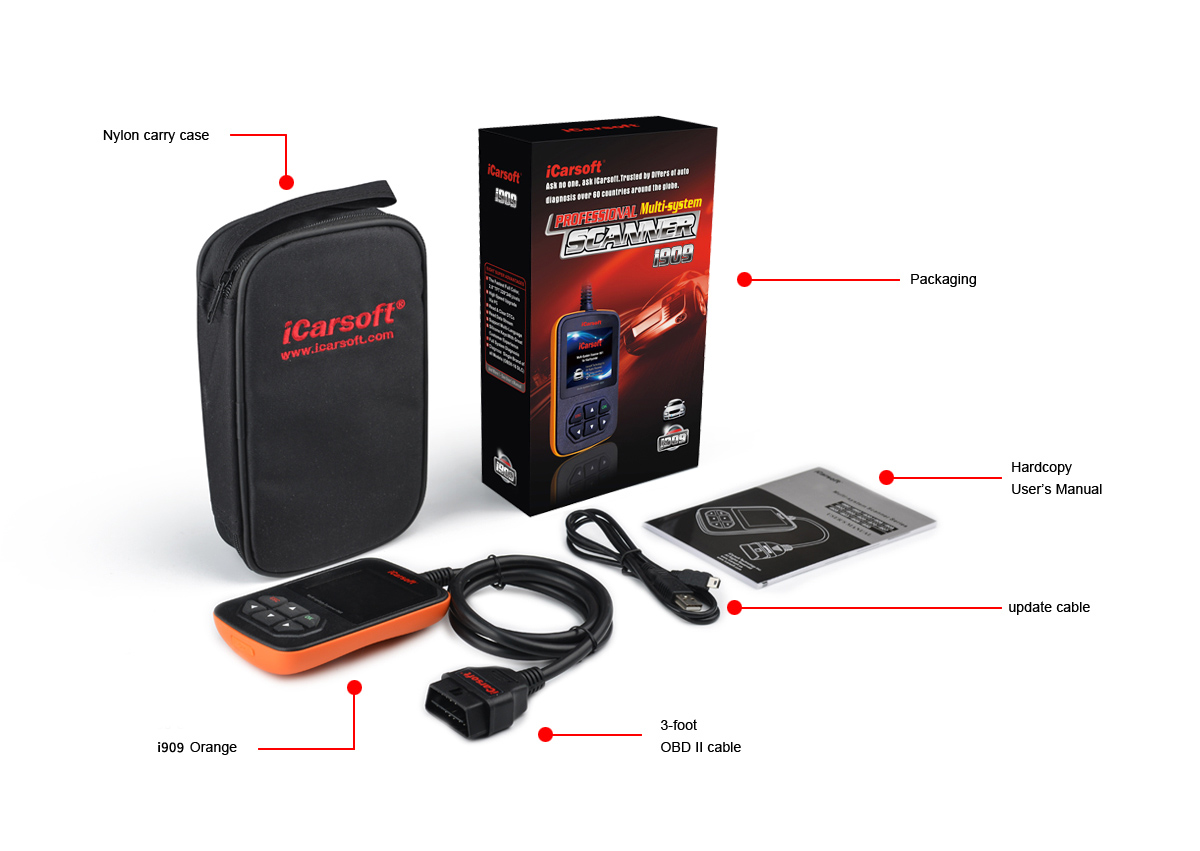

Contents

Hardcopy User's Manual
3-foot OBD II cable
Data cable
Nylon carry


Vehicle coverage for Mitsubishi

Pls note that for different vehicles, the year coverage may not be the same.


Vehicle coverage for Mazda (2001 to 2014)

Pls note that for different vehicles, the year coverage may not be the same.



Japan District:
• COLT
• COLT PLUS
• DELICA D:5
• DELICA SPACE GEAR
• DELICA VAN / CARGO /TRUCK
• EK-SPACE
• EK-WAGON(B11W)
• EK-WAGON(H81W)
• GALANT FORTIS
• GALANT FORTIS SPORTBACK(CX#)
• GRANDIS
• I
• I-MIEV
• LANCER
• LANCER CARGO
• LANCER EVOLUTION(CZ#)
• LANCER WAGON
• MINICA
• MINICAB / TOWNBOX
• MINICAB-MiEV
• MIRAGE
• OUTLANDER(CW#)
• OUTLANDER (GF#)
• OUTLANDER-PHEV
• PAJERO(V6#,V7#)
• PAJERO Io
• PAJERO MINI
• RVR
• TOPPO
• TRITON




Europe District:
• ASX
• ATTRAGE
• COLT CZC
• COLT,COLT CZ3 / CZT
• GALANT(DJ#)
• GRANDIS
• i-MiEV
• L200(K6#,K7#)
• L200(KA#,KB#)
• L300
• LANCER(CS#,CT#)
• LANCER(CY#)
• LANCER EVOLUTION(CZ#)
• LANCER SPORTBACK(CX#)
• LANCER WAGON
• OUTLANDER(CU#)
• OUTLANDER(CW#)
• OUTLANDER (GF#)
• OUTLANDER-PHEV
• PAJERO / MONTERO(V6#,V7#)
• PAJERO / MONTERO(V8#,V9#)
• PAJERO SPORT / MONTERO SPORT(K8#,K9#)
• PAJERO SPORT / MONTERO SPORT(KH#)

USA District:
• ECLIPSE
• ECLIPSE SPYDER
• ENDEAVOR
• GALANT
• i-MiEV
• LANCER(CS#,CT#)
• LANCER(CY#)

• LANCER EVOLUTION(CZ#)

• LANCER SPORTBACK(CS#)
• LANCER SPORTBACK(CX#)
• MIRAGE
• MONTERO
• OUTLANDER(CU#)
• OUTLANDER(CW#)
• OUTLANDER (GF#)
• OUTLANDER SPORT / RVR
• RAIDER





Australia District:
• 380
• ASX
• CHALLENGER(k9#)
• CHALLENGER(kH#)
• COLT

• COLT CABRIOLET

• EXPRESS(PB#)
• EXPRESS / STAR WAGON(P0#,P1#)
• GRANDIS
• i-MiEV

• LANCER(CY#)
• LANCER EVOLUTION(CZ#)
• LANCER SEDAN
• LANCER SPROTBACK(CX#)
• LANCER WAGON
• MIRAGE
• OUTLANDER(CU#)
• OUTLANDER(CW#)
• OUTLANDER (GF#)
• OUTLANDER-PHEV
• PAJERO(V6#,V7#)
• PAJERO(V8#,V9#)
• TRITON(K6#,K7#)
• TRITON(KA#,KB#)





General District:
• 380
• ADVENTURE
• ASX
• ATTRAGE / MIRAGE G4
• CHARIOT
• COLT CABRIOLET
• COLT T120SS
• COLT/COLT PLUS
• DELICA D:5
• DELICA PICK UP
• DION
• ECLIPSE
• EXPRESS(PB#)
• GALANT(DJ#)
• GALANT(EA#)
• GRANDIS
• I
• i-MiEV
• L200
• L300/DELICA WAGON
• LANCER(CK#)
• LANCER(CS#,CT#)
• LANCER/LANCER EX(CY#)
• LANCER EVOLUTION (CZ#)
• LANCER SPORTBACK (CX#)
• LANCER WAGON
• MAVEN

• OUTLANDER(CU#)
• OUTLANDER (GF#)

• OUTLANDER(CW#)/OUTLANDER EX(CW#)
• OUTLANDER-PHEV
• PAJERO/MONTERO(V6#,V7#)
• PAJERO/MONTERO(V8#,V9#)
• PAJERO iO
• PAJERO SPORT/MONTERO SPORT(K8#,K9#)
• TRITON/L200(KA#,KB#)/STRADA(KA#,KB#)
• ZINGER/FUZION
• NEW CANTER 3.5T





System Coverage:
• ENGINE
• AT
• ABS
• SRS
• SWS
• AC
• METER
• ETACS
• 4WS/EPS

• POWER GATE
• ENGINE
• IMMO
• AUTO CRUISE
• AFS/ACL
• CAMERA
• ELECTRIC SLIDE DOOR R
• ELECTRIC SLIDE DOOR L
• MULTI SELECT 4WD
• CORNER SENSOR/BACK SENSOR
• MULTI AROUND MONITOR
• ASSIST BATTERY
• KEYLESS OPERATION

• MAZDA6(EURO STG3-4 and General)
• ATENZA(JPN)/MAZDA6(General)
• MPV(JPN/GENERAL)
• MPV(Europe/General)
• MAZDA6(North America/General)
• MAZDA2(EURO STG3/4 Specs.)
• MAZDA3(EURO STG3/4/5 and General specs.)
• AXELA-MAZDA3(Japan-General Specs.)
• MAZDA3(North America/General)
• Escape/Tribute(-2006/3)
• BONGO/BONGO BRAWNY/SPECTRON
• MPV(North America/General)
• TITAN DASH
• MAZDA5(EURO STG3/4/5 and General specs.) / i-MAX
• PREMACY/MAZDA5(Japan General specs.)
• MAZDA5(North America Specs.)
• MX-5(Europe/General Specs.)
• ROADSTER/MX-5(Japan/General Specs.)
• MX-5(North America/General Specs.)
• RX-8(North America Specs.)
• MPV/Mazda8(JPN/General)
• RX-8(Europe/General/Japan Specs.)
• Escape/Tribute(2006/4-)
• CX-7(North America/General Specs.)
• CX-7(Japan/General Specs.)
• CX-9(North America/General Specs.)
• CX-7(Europe/General Specs.)
• DEMIO(JPN)–VERISA(JPN)-MAZDA2(General)
• BT-50/Ranger
• PROTÉGÉ
• DEMIO(JPN)/MAZDA2(General)


• MAZDA2(Europe)
• MAZDA2(China)
• MAZDA6(GH,Before Facelift)
• MAZDA6(GH,After Facelift)/ATENZA

• 626/626 WAGON/TELSTAR
• LASER/323/TIERRA
• PREMACY/IXION
• PREMACY
• Biante(Japan)
• MAZDA3(China/General)
• FAMILIA/LASER
• MX-5
• AZ/WAGON(MJ)
• XEDOS9
• CAPELLA/CAPELLA W/TELSTAR /TELSTAR W
• DEMIO/121 DEMIO/121
• DEMIO/FESTIVA MINI WAGON
• FRIENDEE/FREDA/BONGO FRIENDEE
• "BONGO BRAWNY/ECONOVAN/
• MAZDA E-SERIES"
• Fiesta/Mazda 121/Bantam
• MX-5 MIATA
• ROADSTER/MX-5
• Escape/Tribute/Maverick
• "(All MY05)Escape/Tribute/Maverick/
• Mariner"
• MAZDA6(China)
• Millenia
• AXELA/MAZDA3
• "B-Series/Bravo/Fighter/Courier/
• Ranger/Everest/Endeavour"
• MARVIE
• MAZDA 929

• MILLENIA/EUNOS 800
• Ranger/Mazda B-Series/Courier
• MAZDA6(Middle East/General)
• Ranger/Courier/Mazda B-Series/Bravo
• Escape/Tribute/Mariner
• PREMACY/MAZDA5
• DEMIO(JAN)/MAZDA2(OTHER)





System Coverage:
• PCM
• ABS
• TCM
• ICM
• RCM
• EATC
• EPS
• GEM
• 4X4
• ACU
• AFS
• DSM
• ECS
• FFH
• LCM
• LHID
• LTM
• MID
• PAM
• RHT
• RKE
• RVM


Specifications
A) Display: 2.8" Color screen, 320 x 240 pixels display with contrast adjustment
B) Operation Temperature: 0 ℃ -- 50 ℃
C) Storage Temperature: -20 ℃ -- 70 ℃
D) Power: 9V -- 18V
E) Operating current:100mA@12V (Typical)
F) Power consumption: 1.2W (Typical)

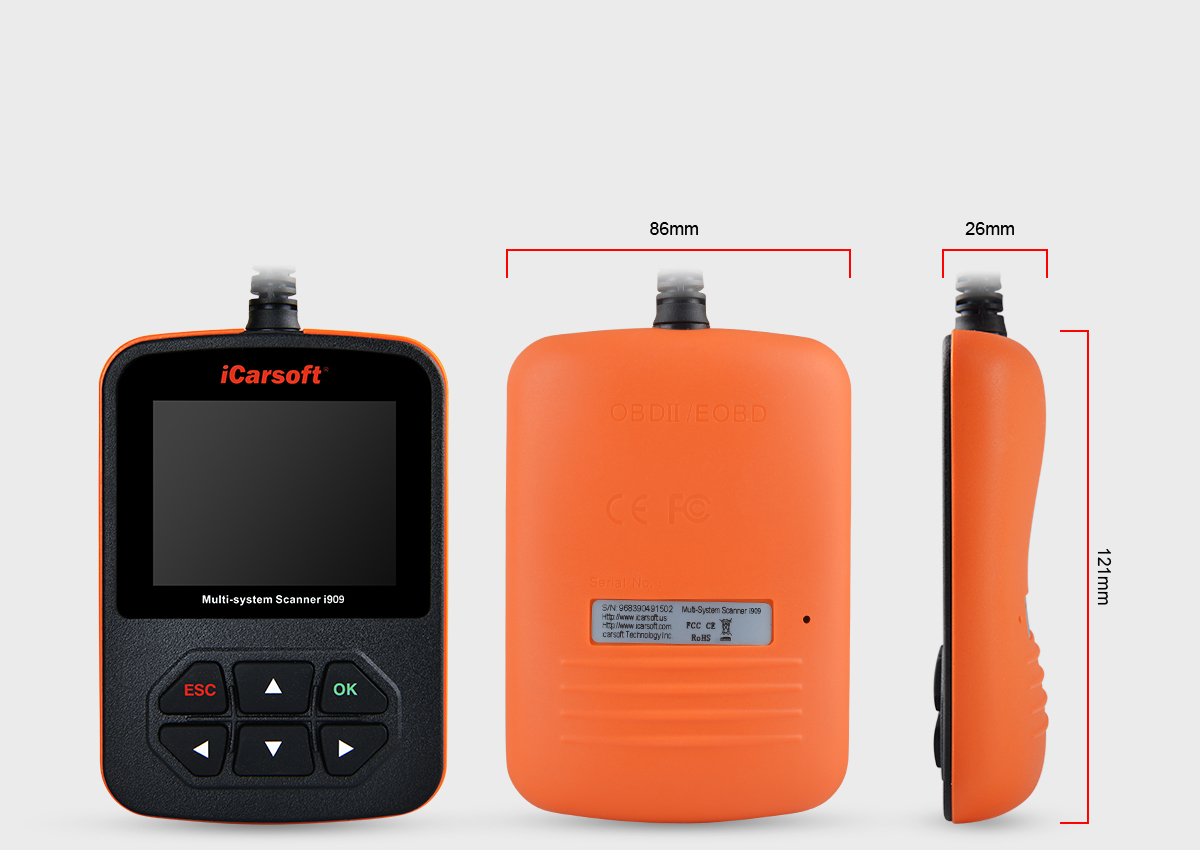

G) Dimension: 121mm*86mm*26mm (LxWxH)
H) Weight:

Contents
Support Multi-Language
Below languages are now available:
• English
• German
• Spanish
• French
• Portuguese
• Russian
